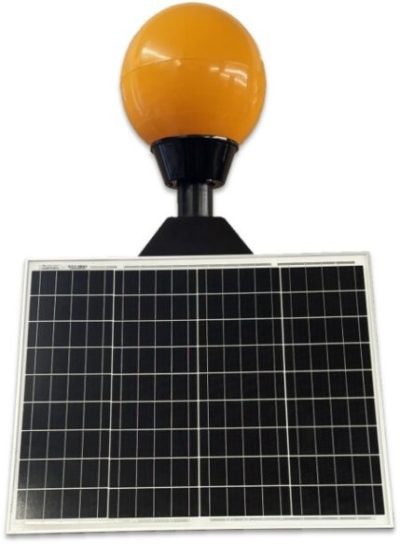

Solar Belisha Beacon (SolarisPTM)

SolarisPTM ™ – MK4 – Retro-fit Solar Belisha Beacon

Part No: FSBB2016 V2 PTM -Mk4

Available in a Post Top Mount version to retro-fit exisiting 76mm Zebra Posts from mains to solar, Our Solar LED Belisha Beacons are perfect for both new builds and upgrades. This set up comes

in two parts the Main body comprising of; 1no, Battery, 1no, Control Box, Bright White LEDs, Gallery & Globe, and then the single 55watt panel is boxed separately.

All the fixings to be able to fix the panels onto the main body are included along with full fitting instructions.

Provides years of maintenance free operation
Beacon Consists of 12No. 1w LEDs consuming 8watts of power
300mm Amber Polyethylene Globe and robust Aluminium Gallery
55watt Photovoltaic Panel
1No. 12v, 60Ah Batteries housed in the column with full on-site battery monitoring via Victon bluetooth app
4.6m 76 dtraight post available as an optional extra – flange mount or rooted version
Auto dimming at night to save power
Automatically operates 24/7/365
L70 – 80,000 hours LED Beacon, 5+ years expected battery life, can be easily replaced on site
Zero energy and CO₂ emissions
Quick and easy installation
Cost effective replacement for conventional mains Belisha Beacons due to cable faults/ power shortages

“We’d like to thank Fisher & Company for their help and prompt responses and delivery when it comes to their Solar Belisha Beacon. They were quickly and easily installed on the day they were delivered. The management have all commented on how impressed they are with the service provided and the aesthetics and quality of the product.” – Andrew Yeomans, Project Engineer, Huhtamaki UK Ltd

FSBB2016 V1’s at Huhtamaki, Go

*Please note our 2 year warranty is a return to base warranty only and will be void if any damage caused by the customer to the Solar unit, Control Box or Battery is found on inspection*
**The 2 year warranty is only valid on the Control box, Solar Panels and LED, Globe & Gallery. The Battery comes with a 1 year manufacturer’s warranty**

To request a Data Sheet please email info@fisherandcompany.co.uk
Manufactured in Somerset, UK
