OlympiadIPB – Part No. IPB

Featuring our unique internally illuminated Belisha Beacon constructed using aluminium extrusion which provides excellent vandal resistance and durability yet keeps the product weight down. The OlympiadIPB is fitted with LED technology providing bright light with low power consumption of just 30W total, combined with low maintenance and easy installation.

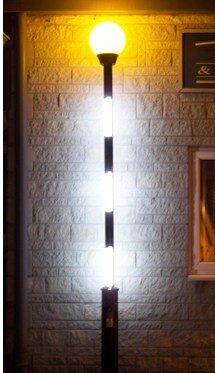

Illuminated Belisha Beacon - IPB at Night  Illuminated Belisha Beacon - IPB with Lumos-4 & CSGS

OlympiadIPB Specifications

• 8w extra bright white LED Flashing Beacon
• 6 sets of bright white LEDs illuminating opposing sides facing traffic – total 21w
• Carbon emission of just 0.143 metric tonnes per unit per annum
• 3m column as standard with choice of Base Options – 600mm Root or Flange Mount
• IP54 rated & tested, 300mm UV Stabilised polyethylene Amber Globe
• Robust Aluminium Gallery secured to column with 3No. M8 Stainless Steel security hex-pin screws
• Vandal resistant polycarbonate lens covering column LEDs
• Robust anti-fade black powder coat finish to column with 3No. 300mm reflective white bands
• Provides years of virtually maintenance free, efficient operation
• Saves power and money compared to traditional 60w bulbs through energy efficiency
• UMSUG Code 79 46 030 001 100

Optional Extras

Dispatched partially assembled to speed up installation and minimise cable crushing,  making the wiring a very quick and simple task – saving you time and money on site – Contractor approved ✓



Fitted with Double Pole Fused Isolator (Cut-Out)We deliver this product to you in 2 sections for ease of installation and set up:-
– Illuminated Column & Base Section (Strip lights already pre wired into Cut-out)
– Gallery, Globe & LED (will need fitting and wiring into Cut-out onsite.  Spare fuse carrier clearly marked.)

To request a Data Sheet please email info@fisherandcompany.co.uk
Manufactured in Somerset, UK
