FFP – Single or Double Door Feeder Pillars

Fisher Feeder Pillar – FFP

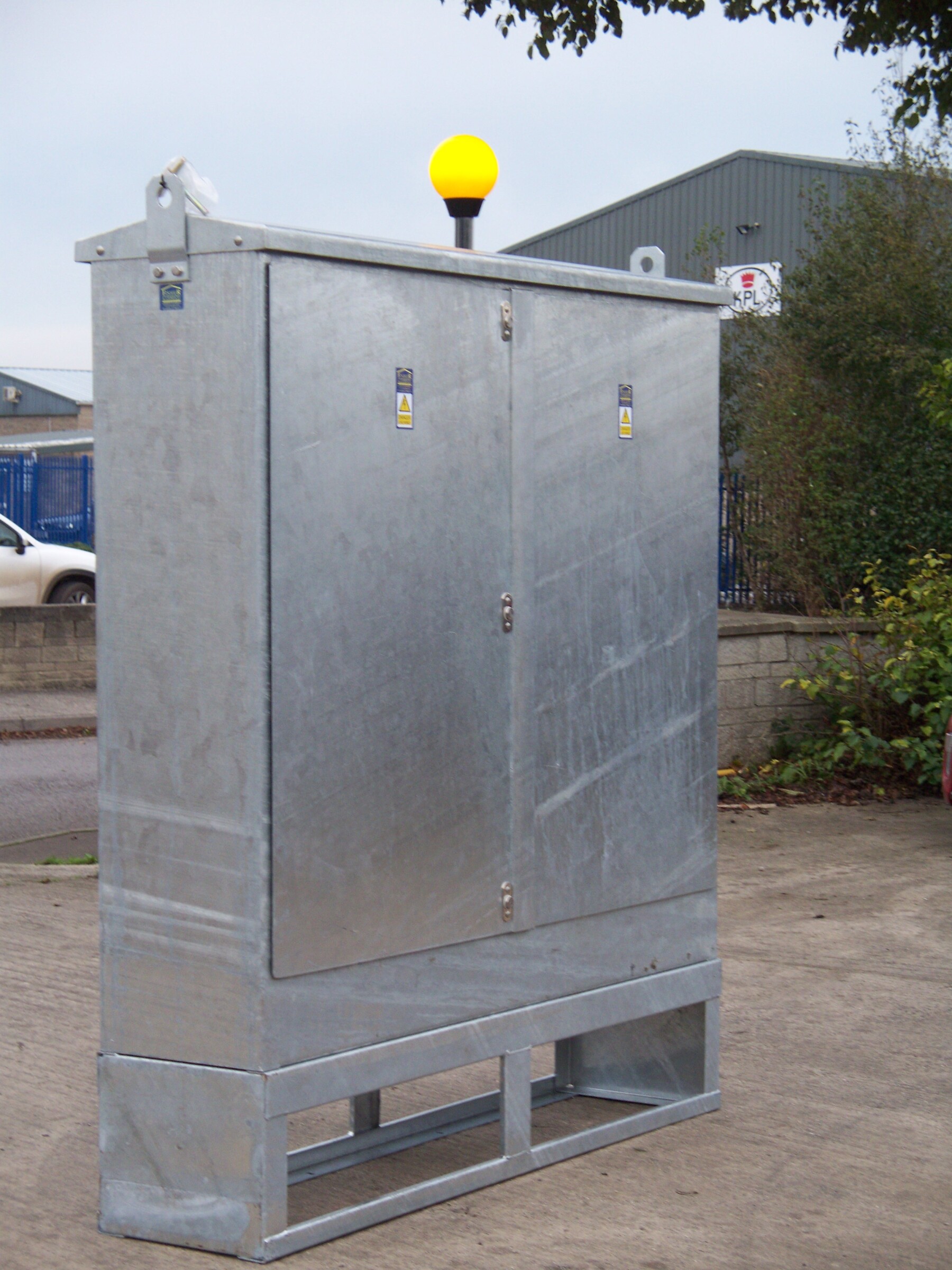

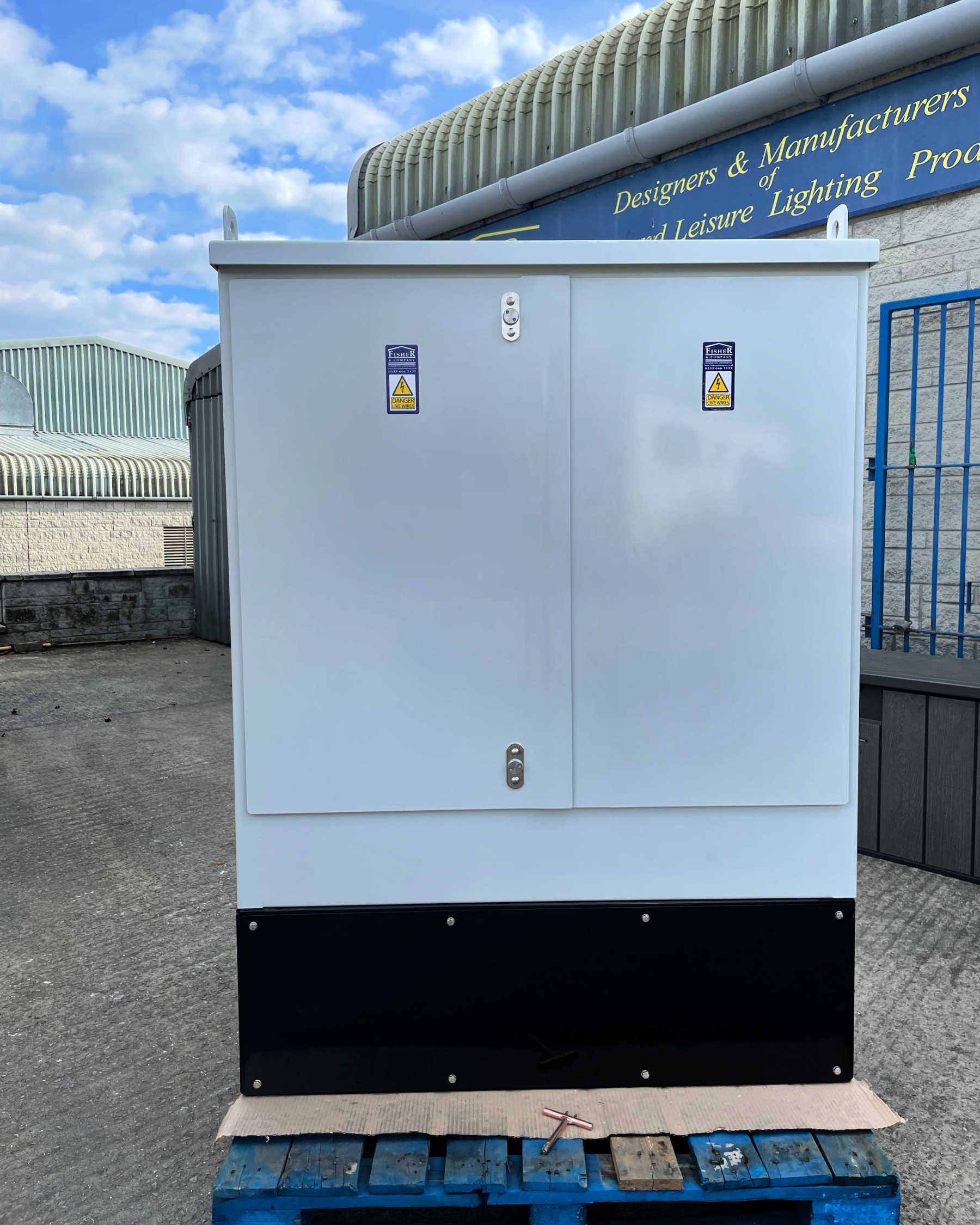

Heavy duty Single and Double door Fisher Feeder Pillars in 3mm and 5mm. Designed for housing multiple distribution boards and switches whilst maintaining excellent protection from the weather. We can supply as Shell Only or Pre-wired to customers specification.

Specification

• Designed to IP54.
• Material – Manufactured from HR4 mild steel plate.
• Hot dipped galvanized to BS EN ISO 1461.
• Backboard – 18mm external grade plywood treated with water repellent.
• Locks – fitted with 2 ‘Fisher’ Anti Vandal Locks (Tri-head locks available on request).
• Doors – Hinged internally.
• Ventilated Top.
• Seal – fitted with water tight seal around door aperture.
• Earth Stud – fitted as standard with a M8 brass earth bolt, nuts and washers on both body and door.
• Hazard warning label to BS5378.

Options Available

• Choice of finishes and colours, including G2. Take a look at the RAL colour chart at the bottom of this page.
• Body and door earth cross bonded with 90amp copper braid.
• Hasp and Staple.
• Louvre Panels.
• Vermin Mesh.

This range of Fisher Feeder Pillars are supplied with Detachable Roots and also with stainless steel fixing bolts.  In addition, Fixed Roots can be supplied on request.  Alternatively, if the size you require is not shown on the following pages please advise the size you require and we can manufacture to your specifications.

Click to download our FFP Feeder Pillars Data Sheet

3mm Range of Electrical Service Pillars

(All dimensions are approximate and in mm)

* Single Door Sizes

** With these sizes we would recommend the use of 5mm Pillars due to possible distortion during the galvanizing process.
*** Single Door size and recommended to use 5mm.

5mm Range of Electrical Service Pillars

(All dimensions are approximate and in mm)

* Single Door Sizes

Specific/Bespoke sizes available on request – please email info@fisherandcompany.co.uk
Manufactured in Somerset, UK
